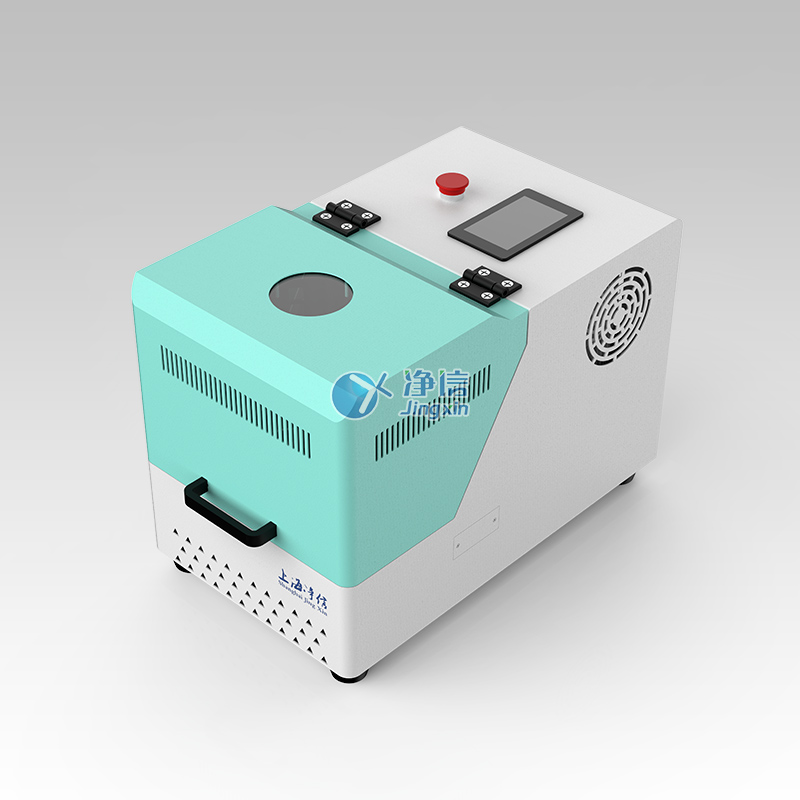

  • Soil Ball Mill

    Model:JX-2GL

    Brand:Shanghai Jingxin

    Specifications :Set

    Introduction:JX soil ball mill is a special high-performance mechanical equipment for the preparation of small ultra-fine powders, which is innovatively improved and developed by our company.

    Product Description:

    JX Soil Ball Mill is a special high-performance mechanical equipment for the preparation of small ultra-fine powders, which is innovatively improved and developed by our company. A large number of user applications show that the soil ball mill has the characteristics of small size, light weight, easy operation and no pollution, and is very suitable for the use of various types of soil grinding in the laboratory. The advanced planetary structure of the soil machine increases the grinding efficiency by more than ten times; the four tanks are separately charged, so that different materials do not affect each other. Gear transmission ensures the consistency and repeatability of the experiment; fast rotation, high energy Large, high efficiency and fine particle size; four samples of different sizes and materials can be obtained simultaneously in one experiment;

     Soil ball mill advantages:

    1. Injection size: ≤10 mm, other materials ≤3mm, discharge particle size: <100nm, dry grinding or wet grinding;

    2. The pressure can be set (by the scale), digital timing;

    3. 7 kinds of grinding kits of different materials can be provided: stainless steel, agate, etc.

    4. Real-time power display, crushing time setting, digital format, continuous operation from 1 to 99 minutes;

    5. The grinding chamber is designed to be sealed and dustproof, with observation window;

    6. High-power drive, with electronic monitoring device.


    Technical parameter:

    The main parameters

    Parameter range

    Brand name:

    JXFSTPRP net letter

    product name:

    Soil Ball Mill

    Model:

    JX-2GL

    Operation method:

    LCD liquid crystal touch display

    Injection size (varies in material):

    ≤10mm, other materials ≤3mm

    Sample size:

    <100nm

    Processing volume:

    50ml/can

    Ball mill tank capacity:

    4x100ml

    Main disc speed:

    35-435r/min

    Ball mill rotation speed:

    70-870r/min

    Transmission ratio (planetary disc/ball mill):

    1:2

    Forward and reverse operation:

    Yes

    Continuous running time setting:

    1-9999 min

    Pause time setting:

    1-999 min

    Dangerous emergency stop:

    Yes

    Grinding Room Lighting Description:

    LED blue light

    Touch screen:

    adaptation

    Vector volume:

    50ml -100ml

    Ball Milling Media Material:

    Stainless steel, agate, zirconia, corundum, nylon, teflon optional

    Media Diameter:

    3/5/10/15/20mm

    Media Quality:

    100-400g

    Grinding method:

    Dry grinding / Wet grinding

    Low temperature cooling treatment:

    Yes (additional)

    Inert gas protection treatment:

    Yes

    Net weight:

    29kg

    Dimensions (length, width and height):

    530*300*340mm

    Standard:

    JXFSTPRP Jingxin

    Tank ball ratio:

    Tank ball ratio:



    Grinding jar

    100ml

    Effective volume

    1-50ml

    Ball size

    Number of balls

    5mm

    300

    10mm

    30

    15mm

    15

    20mm

    8


    Experimental case:

    1. Description:

    (1) Application field: environment;

    (2) Materials/raw materials: soil, pebbles;

    (3) Feed particle size: 1mm;

    (4) Feeding amount: 500g;

    (5) Material properties: brittle;

    (6) Customer requirements: 50μm;

    (7) Post-sequence analysis: particle size analysis.

    2. Scheme:

    (1) Equipment (instrument) selection: JX-2G, soil ball mill;

    (2) Jar and ball configuration: agate jar with agate ball;

    (3) Operating parameters: 500 r/min rotation, alternately running forward and reverse after 30 minutes;

    (4) Grinding time: 1 hour;

    (5) Result (recommended): JX-2G can be used to grind the soil;

    (6) Grinding result: 100%<50μm.
