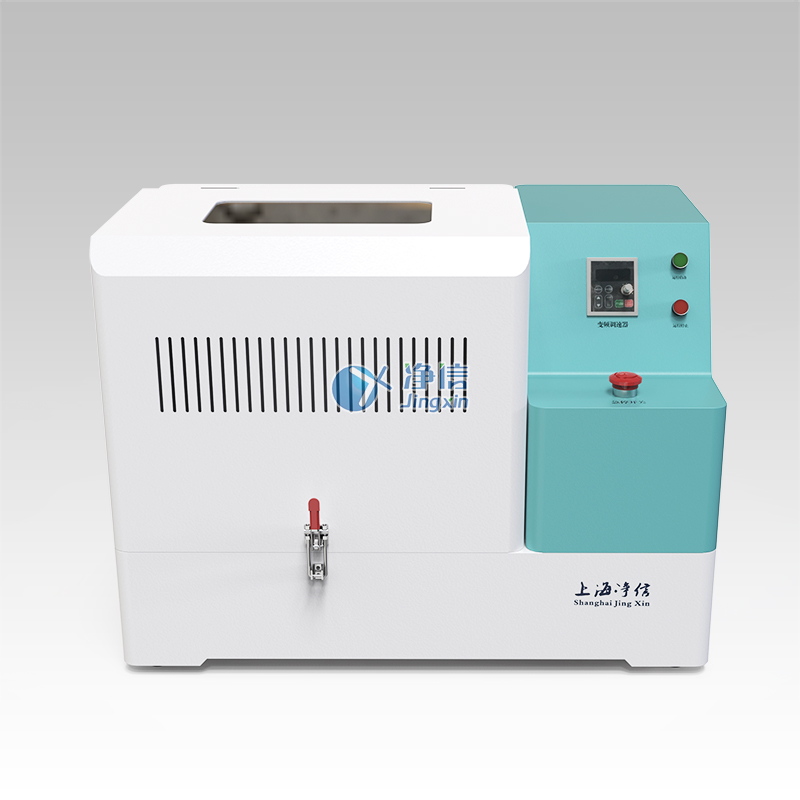

  • Planetary Ball Mill

    Model:JX-4G

    Brand:Shanghai Jingxin

    Specifications :Set

    Introduction:JX-4G high-performance ball mill can grind samples to nanometer level in a short time.This instrument is suitable for grinding (dry or wet grinding) and mixing processing of soft,

    Product Description:

    The JX-4G high-performance ball mill can grind samples to the nanometer level in a short time. The instrument is suitable for grinding (dry or wet grinding) and mixed processing of soft, medium-hard, extremely hard, and brittle samples, and guarantees the grinding The results are repeatable. It can be used in the preparation of physical and chemical analysis, colloidal grinding, new materials and mechanical alloys.

    working principle:

    When the instrument is started, the motor drives the public sun gear to rotate, and the grinding jar on the sun gear rotates around its own axis. The direction of the grinding jar's rotation is exactly opposite to the direction of the sun gear. The rotation speed ratio of the sun gear and the grinding tank is generally 1:-2.3. When the grinding ball and the grinding jar are operated together, they are affected by the superimposition of the deflection force of the rotation. Under this influence, the grinding ball releases a large amount of kinetic energy. Shattered.


    main advantage:

    Suitable for long-term sample preparation and continuous operation

    The speed is adjustable, the operation is stable, and the sample can be ground to the fineness of micron level (dry grinding) and nano level (wet grinding).

    Automatic reverse operation to prevent sample accumulation

    6 different material grinding jars to choose from

    Advanced operation interface, simple and convenient


    Basic parameters:

     Main parameters

    Parameter range

    Brand Name:

    JXFSTPRP Jingxin

    Product name:

    Planetary Grinding Machine

    Model:

    JX-4G

    Operation mode:

    LED digital display

    Maximum sample size (different materials):

    < 10mm

    Sample size:

    < 100nm

    Minimum processing volume

    50ml/can

    Maximum processing capacity:

    4x1500ml

    Main disc speed:

    35-335r/min

    Rotation speed of ball mill tank:

    70-670r/min

    Transmission ratio (planetary disc/ball mill tank):

    1:2

    Forward and reverse operation:

    yes

    Continuous running time setting:

    00:01:00-99:59:59

    Pause time setting:

    00:01:00-99:59:59

    Dangerous emergency stop:

    Yes

    Grinding room lighting description:

    LED blue light

    Ball mill carrier material:

    stainless steel, agate, zirconia, corundum, tungsten carbide, polyurethane, etc. optional

    Carrier volume:

    100ml-1500ml

    Material of ball milling media:

    stainless steel, agate, zirconia, corundum, nylon, polytetrafluoroethylene optional

    Media diameter:

    3/5/10/15/20mm

    Media quality:

    200-1000g

    Grinding method:

    dry grinding / wet grinding

    Low temperature cooling treatment:

    Yes (additional)

    Inert gas protection treatment:

    Yes

    Net weight:

    92kg

    Size (length, width and height):

    720*480*500mm

    Standard:

    CE

    Tank ball ratio:

    Tank ball ratio:







    Grinding tank

    100ml

    250ml

    1500ml

    Effective volume

    1-50ml

    30-125ml

    240-700ml

    Ball size

     Number of balls

    5mm

    300

    1200

    2000

    10mm

    30

    50

    100

    15mm

    15

    45

    70

    20mm

    8

    15

    25

    30mm



    6

    8

    40mm





    4

    Grinding effect :

    Different treatment effects:

    1、Optional material of ball mill tank:

    2、Special ball mill tank for vacuum/inert gas protection treatment:

     Optional volume of ball mill carrier: 100ml (need to be equipped with tank pads) / 250ml / 1500ml (standard)

    3、Optional materials for ball milling media:

    Optional diameter of ball milling media: 3/5/10/15 / 20mm

    Packing specifications of ball milling media: 200g/can 500 g/can 800 g/can 1000 g/can
